Clip check valve H76H
It is used for pure pipeline and industrial, environmental protection, water treatment, high-rise building water supply and drainage pipeline, to prevent the reverse flow of media. The check valve adopts the clamp type, the butterfly plate is two semicircle, and the spring is forced to reset. The sealing surface can be used as the wear-resistant material or rubber lining for the body surfacing. The use range is wide and the seal is reliable.
Characteristic
1. Small size, light weight, compact structure and convenient maintenance.
2. The valve plate adopts dual mode, and can be closed automatically under the elastic force of the spring.
3. The reflux of medium can be prevented because of fast closing.
4. The length and size of the valve body is small, and the rigidity is good.
5. Safe and convenient. It can be installed in two directions.
Standard of execution
1, flange connection size: GB/T1724.1-98
2. Structure length: GB/T12221-1989, ISO5752-82

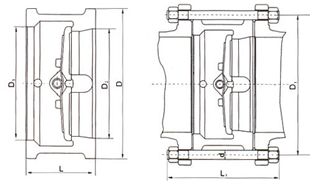

Schematic diagram
配管法兰 | 公称压力 | 常规产品型号 | ||||||
---|---|---|---|---|---|---|---|---|
JB/T74~90 GB/T9112~9124 HG50592~20614 |
PN1.0MPa | H76H-10C | H76W-10P | H76W-10P8 | H76W-10P3 | H76W-10R | H76W-10R8 | H76W-10R3 |
PN1.6MPa | H76H-16C | H76W-16P | H76W-16P | H76W-16P3 | H76W-16R | H76W-16R8 | H76W-16R3 | |
PN2.5MPa | H76H-25 | H76W-25P | H76W-25P8 | H76W-25P3 | H76W-25R | H76W-25R8 | H76W-25R3 | |
PN4.0MPa | H76H-40 | H76W-40P | H76W-40P8 | H76W-40P3 | H76W-40R | H76W-40R8 | H76W-40R3 | |
PN6.3MPa | H76H-63 | H76W-63P | H76W-63P8 | H76W-63P3 | H76W-63R | H76W-63R8 | H76W-63R3 | |
PN10.0MPa | H76H-100 | H76W-100P | H76W-100P8 | H76W-100P3 | H76W-100R | H76W-100R8 | H76W-100R3 | |
PN13.0MPa | H76H-160 | H76W-160P | H76W-160P8 | H76W-160P3 | H76W-160R | H76W-160R8 | H76W-160R3 | |
PN20.0MPa | H76H-200 | H76W-200P | H76W-200P8 | H76W-200P3 | H76W-200R | H76W-200R8 | H76W-200R3 | |
PN25.0MPa | H76H-250 | H76W-250P | H76W-250P8 | H76W-250P3 | H76W-250R | H76W-250R8 | H76W-250R3 | |
GB/T9112~9124 HG20615~20635 SH3406 |
PN2.0MPa | H76H-20C | H76W-20P8 | H76W-20P3 | H76W-20R8 | H76W-20R3 | ||
PN5.0MPa | H76H-50 | H76W-50P8 | H76W-50P3 | H76W-50R8 | H76W-50R3 | |||
PN11.0MPa | H76H-110 | H76W-110P8 | H76W-110P3 | H76W-110R8 | H76W-110R3 | |||
PN15.0MPa | H76H-150 | H76W-150P8 | H76W-150P3 | H76W-150R8 | H76W-150R3 | |||
PN26.0MPa | H76H-260 | H76W-260P8 | H76W-260P3 | H76W-260R8 | H76W-260R3 | |||
PN42.0MPa | H76H-420 | H76W-420P8 | H76W-420P3 | H76W-420R8 | H76W-420R3 | |||
Class150 | H76H-A1C | H76W-A1P8 | H76W-A1P3 | H76W-A1R8 | H76W-A1R3 | |||
Class300 | H76H-A3 | H76W-A3P8 | H76W-A3P3 | H76W-A3R8 | H76W-A3R3 | |||
Class600 | H76H-A6 | H76W-A6P8 | H76W-A6P3 | H76W-A6R8 | H76W-A6R3 | |||
Class900 | H76H-9 | H76W-9P8 | H76W-9P3 | H76W-9R8 | H76W-9R3 | |||
Class1500 | H76H-15 | H76W-15P8 | H76W-15P3 | H76W-15R8 | H76W-15R3 | |||
Class2500 | H76H-A25 | H76H-A25P8 | H76H-A25P3 | H76H-A25R8 | H76H-A25R3 | |||
主要 零件 材料 | 阀体 | WCB(A105) | ZG1Cr18Ni9Ti | CFB(304) | CF3(304L) | ZG1Cr18Ni12Mo2Ti | CF8M(316) | CF3M(316M) |
阀擗 | CF8 | CF8 | CF8 | CF3 | CF9M | CF8M | CF3M | |
目轴 | 2Cr13 | 1Cr18Ni9Ti | 0Cr18Ni9 | 00Cr19Ni10 | ZG1Cr18Ni12Mo2Ti | 0Cr17Ni12Mo2 | 00Cr17Ni14Mo2 | |
弹簧 | 0Cr18Ni9 | 0Cr18Ni9 | 0Cr18Ni9 | 00Cr19Ni10 | 00Cr17Ni14Mo2 | 00Cr17Ni14Mo2 | 00Cr17Ni14Mo2 | |
适用工况 | 适用介质 | 水、蒸汽、 油品等 | 硝酸等腐蚀性介质 | 强氧化性 介质 | 醋酸等腐蚀性介质 | 尿素等腐 蚀性介质 | ||
适用温度(℃) | -29~425 | -196~540 | -196~425 | -196~540 | -196~455 | |||
注:本表为常规对夹式止回阀的型号编制,主要零件材料及适用工况,其他要求及其型号编制参见对夹式止回阀型号编制方法 |
